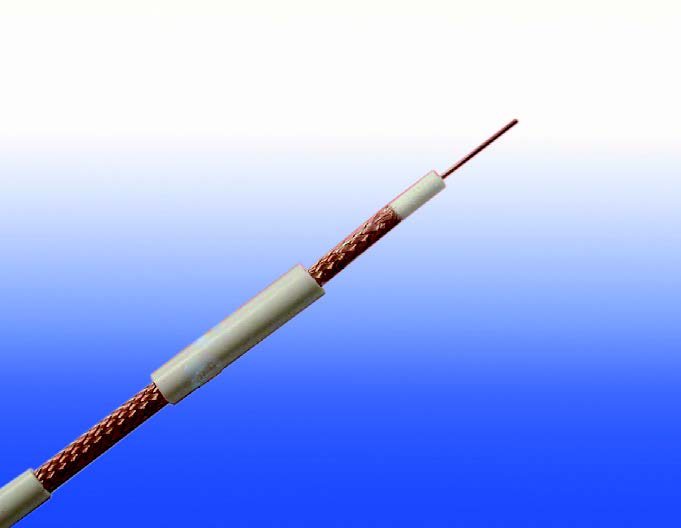

Fire resistant RG59 b/U Coaxial Cables

RG59 B/U FR

Fire resistant RG59 b/U Coaxial CablesFire resistant RG59 b/U Coaxial Cables

Application:

The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where

continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this

cable is ideal for use in public, commercial and industrial environments.

Standards:

Basic design to MIL-C-17

Fire Performance:

Circuit Integrity

IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3);
NF C32-070-2.3(CR1)

System Circuit Integrity

DIN 4102-12, E30 depending on lay system



Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation (Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4



Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*



No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*



Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

note: asterisk * denotes superseded standard.

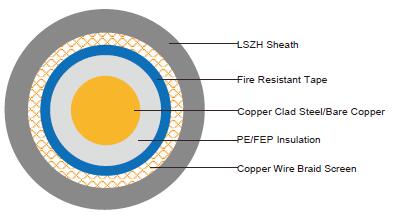

Cable Construction:

Conductors: Copper clad steel, solid according to IEC 60228 class 1.

insulation: PE wrapped with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1 or

fluoropolymer(FEP) compound.

binder: Glass tape

Overall screen: Plain copper wire braid

Outer sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound type

SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent

and anti termite properties can be offered as option.

Physical and Thermal Properties:

Temperature range during operation (fixed state): -30°C - +70°C

temperature range during installation (mobile state): -5ºC - +60ºC

Minimum bending radius: 8 x Overall Diameter

Electrical Properties:

Impedance

75±5Ω

Capacitance

67 nF/km

Velocity ratio(%)

66

Insulation resistance

>2000 Mohm.Km

Shield coverage

95%

DC resistance



Inner conductor

158 Ω/km

Outer conductor

9.0 Ω/km

Attenuation:

Frequency(MHz)

Attenuation (dB/100 m)

Attenuation (dB/100ft)

50

7.4

2.26

100

10.7

3.26

200

15.7

4.79

400

22.7

6.92

500

25.7

7.84

600

28.7

8.75

860

34.8

10.61

1000

38.0

11.59

Return Loss:

Frequency(MHz)

Return Loss (dB)

30-300 MHz

>31dB

300-600 MHz

>28dB

600-900 MHz

>24dB

Construction Parameters:

cable
Code

Conductor Diameter

Nominal Insulation Diameter

Nominal Screen
No.x Diameter

Nominal Overall Diameter

Approx. Weight



mm

mm

No. x mm

mm

kg/km

RG59 B/U FR

0.58 ± 0.03

3.70 ± 0.10 m

120 x 0.15

6.20 ± 0.10

60.3
